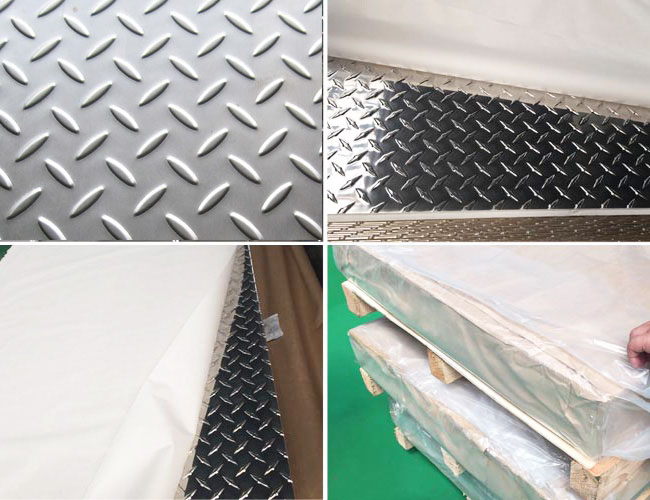

1 bars Aluminium tread plate


1 bar aluminum Checker plate is one kind of tread plate, and can also be called pointer diamond aluminum plate, pointer diamond aluminum plate alloy has 1060 aluminum checkered plate, 5052 chequered aluminum plate, 3003 aluminum chequer plate.

1 bar diamond aluminum plate has good anti-slip effect, mainly used for carriage, platform anti-slip, cold storage floor anti-slip, workshop floor anti-slip, elevator anti-slip party.

ivision Alloy Application Feature
1000 SERIES 105010601070
Utensil, decoration, Reflecting plate, printing plate, heatproof plate -Easy to process and weld, resistant to rust, highconductibility of electricity and heat, low strength-Kinds of Cookware
3000 SERIES 3003
Utensil(F/P, inside of rice cooker), aluminum can,material for interior and exterior of building, Celluar Phone -A3003 : Anodizing Cookwares, general wares, frying pan, coating,Pressure cooker, electric rice cooker, Utensil,Mobile Phone cover & Battery CaseCheaper item with standard quality
5000SERIES 5083505257545A05 Ship board heatproof apparatus, material for interior and exterior of building, Parts of Electronic toolsAutomobile Components: Easy to process and weld and superior hardness &heatproof
6000SERIES 60616063 IT equipment & facility, Mould material, motor material, automatic line, machine & plant etc. -Easy to process , resistant to rust, superior surface treatment
8000 SERIES 8011 Kitchen utensils,Bottle cap -8000 series is durable to process with special alloy.

Producing Line :

We have one 1+2 hot rolling production line, six 2450mm, 2050mm, 1650mm, 1450mm cold rolling lines, two 1650mm foil rolling production lines, two 1850mm continuous rolling production lines and one roll coating production line. These equipment enables us to provide quality checkered plates products for our customers.

Aluminum Checkered Plate Popular Specifications:

Popular materials: aluminum checkered plate 1100 3003 5052
alloy: 1060 3003 3105
temper: H14
Plate thickness: 1.0mm-6.0mm
Plate width:900mm-1500mm

Aluminium checkered tread plates:

Alloy: 1100,1060, 3003, 5005 5052
Temper: H14,H18,H24,H32
Plate Thickness (mm): 1.5mm to 6mm
Width (mm): Up to 1500mm
Length (mm): Up to 6000mm
Standard: EN standard ASTM standard

Aluminum checkered tread plate has the following features:

Truly Slip Resistant;
Durable and Weather Resistant;
Bright Reflective Surface;
Competitively Price.

Aluminum Checkered Plates Popular Products Examples:

Aluminium Checkered Plates with Big/Small five bar Patterns for Ceiling Tiles and Indoor and Outdoor Decoration, thickness 1.2~6.5MM, Width 914~2000MM and Length 600~6000MM, height of pattern of 0.8~1.0MM.
Aluminium tread plate coils: used as tread plate or as the stairs, floor, car hopper etc.
Thickness 1.0mm-8.0mm;
Popular size: 1000*2000,1200*2400,1219*2438,1220*2440
1000*3000,1250*3000,1500*3000 etc.
Surface: stucco, two bars ,five bars ,diamond pattern, mill finish etc.


Packaging Details

  • 1). Each coil to be securely tied with two bands.
  • 2). the contact points of these bands on the coil edge to be protect with edge protectors.
  • 3). Coil then to be properly wrapped with plastic film ,woven belt, resistant paper.
  • 4). Wooden or iron pallet can be used or as your requirements.
  • Export standard package, The inner size of container is below:
  • 20ft GP: 6m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
  • 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM
  • 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBMs
