Big Five Bar aluminium tread plate

Big Five Bar Pattern Aluminium tread plate

Introduction

Big Five Bar Pattern treadplate is famous for its excellent anti-skid ability, which is used as the floor of construction platform, vehicles, ships, stairs,etc. Because the patterns on the surface of the aluminum pattern plate are arranged in relatively parallel according to five bars, and each pattern presents an angle of 60-80 degrees with other patterns, the 5 bar tread plate has superior non-slip performance.

Compared with other aluminum checker plates, 5 bar aluminum tread plate has a better anti-slip function, especially in some public places or vehicles. According to the length of the pattern, it can be divided into large 5 bar treadplate and small 5 bar tread plate. Their lengths are 42mm and 34mm respectively.

Alloys of five bar aluminum tread plate
1050, 1060, 1070, 1100, 1200, 3003, 3005, 3105, 5005, 5052, 5083, 5085, 5086, 5154, 5251, 5454, 5754, 6061, 6063, 6082, 7075, 8011 etc
Temper of five bar aluminum tread plate
Soft HO (h0), H11, H12, H13, H14, H15, H16, H17, H18, H19, H20, H21, H22, H23, H24, H25, H26, H27, H28, H29, H30, H31, H32, H33, H34, H35, H36, H37, H38, H39, H46, H48, H111, H112, H114, H116, H131, H321 etc
T0, T2, T3, T4, T5, T6, T7, T8, T24, T32, T35, T73, T74, T83, T351, T354, T650, T651, T851 etc
Protective film can be added
Production Line: DC and CC production line
Surface finish: Mill finish, mirror finish, nature finish

Available Dimension
	Mill finish Surface	Bright finish Surface
Thickness (mm)	1.30---6.50mm	1.30---6.50mm
Pattern height	Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm	Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm
	Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm	Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm
	Sheet Thickness above 2.0mm, bar height: 1.50mm	Sheet Thickness above 2.0mm, bar height: 1.50mm
Width (mm)	Maximum 1500mm	Maximum 1650mm
Length (mm)	Maximum 6000mm	Maximum 6000mm
Paper interleaves	On request for selected	On request for selected
Normal size	1200×2400mm, 1219×2458mm, 1219×5048mm	1200×2400mm, 1219×2458mm, 1219×5048mm

Application of big five-bar aluminum tread plates

Architectural embellishment: Big Five-bar aluminum tread plates are frequently employed for adorning building exteriors, ceilings, indoor partitions, and more, thereby enhancing the aesthetic appeal and individuality of the structure.

Vehicle manufacturing: Big Five-bar aluminum tread plates are extensively utilized in the automotive sector for fabricating truck panels, cargo racks, roof racks, and other components, thereby enhancing their impact resistance and anti-skid characteristics.

Shipbuilding:Big Five-bar aluminum tread plates are suitable for hull sides, decks, and other components. Their corrosion resistance and anti-slip properties make them a more reliable choice in the marine environment.

Home Decoration: Utilize Bigfive-bar aluminum tread plates to enhance the aesthetic appeal of your living space. These plates can be incorporated into various areas of your home, such as the bathroom or washstands, to achieve a modern and simplistic design.

Common alloys for Five Bar Pattern non-slip Aluminium tread plate

1050 1060 pure 5 Bar aluminum tread plate

5 Bar aluminum alloy pattern plate processed with 1050 1060 aluminum plate as the base, which can adapt to the conventional environment and is cheap. Usually stair treads, cold storage, floors, and outer packaging use this kind of patterned aluminum sheet.

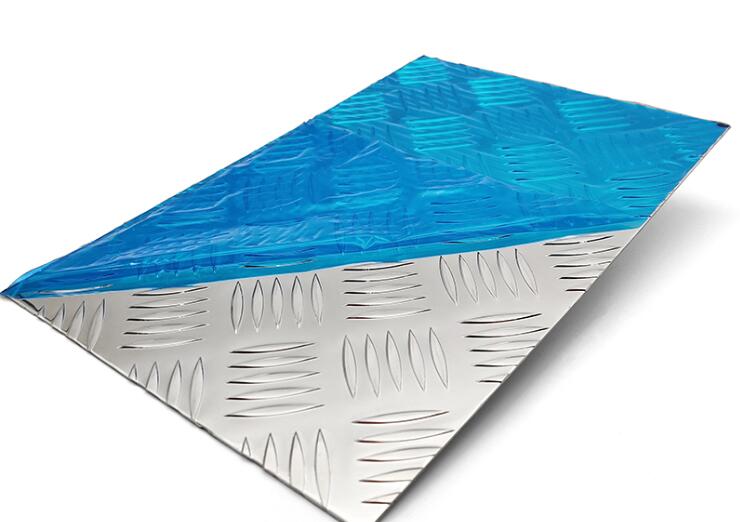

3003 3103 Al-Mn tread checkered plate

processed with 3003 3103 as the main raw material, this kind of aluminum plate is also called anti-rust aluminum plate, its strength is slightly higher than that of ordinary aluminum tread checkered plate, and it has certain anti-rust performance, but its hardness and corrosion resistance are not as good as the 5000 series aluminum tread checkered plate, so this product is used in rust-proof aspects that do not require strict requirements, such as truck models, refrigerated vehicles, and cold storage floors

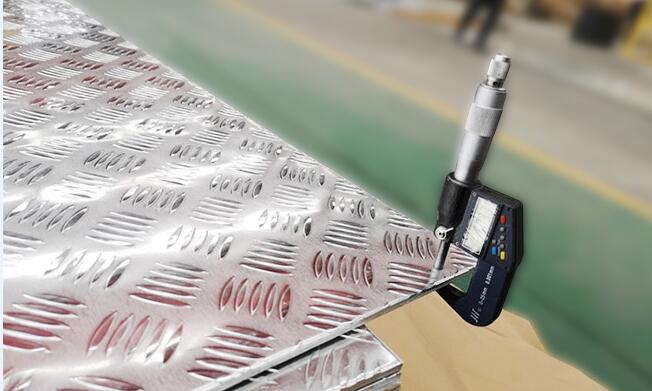

5052, 5083, 5754 Al-Mg tread checkered plate

processed from 5000 series aluminum plates such as 5052, 5083, etc., with good corrosion resistance, hardness, and rust resistance. It is usually used in special places, such as ships, carriages and other humid environments. This kind of aluminum plate has high hardness and has a certain load-bearing capacity.
