Pointer Pattern Aluminium tread plate

Introduction

Pointer Pattern Aluminum Plate is also known as Aluminum Diamond Plate, a special perforated aluminum sheet with raised diamond patterns for safety steps and decoration. With excellent decorative and anti-slipping performances,Pointer Aluminium Pattern Plate is mainly used in architectural and engineering structures as tread plates, flooring decks, anti-slippery floors, or antiskid panels in vehicles or machines. This chequered metal is easy to be pressure processed, extended and bent. Easy to be welded.

Pointer diamond aluminum plate has good anti-slip effect, mainly used for carriage, platform anti-slip, cold storage floor anti-slip, workshop floor anti-slip, elevator anti-slip party.

We provide checkered plates in aluminium, also other materials (stainless steel, carbon steel and etc). Aluminum material applied is mainly composed of aluminum, magnesium and silicon.
We deal with various processed metal sheets embossed, punched, and chequered. Just provide your desired parameters, and we will spare no effort to deliver the most satisfying product for you.

Alloy No. Thickness
(mm)		 Width
(mm)		 Length
(mm)		 Temper
A1050,A1060, A1070,A1100 1.0-10 20-2200 20-8000 H12,H22,H14,H16,H18, H24,H26,etc
3A21,A3003,A3105,A3004 1.0-10 20-2200 20-8000 H14,H18,H24,etc
A5052 ,A5005,A5083,A5754 1.0-10 20-2200 20-8000 H18,H24,H32,H34,H111,H112 ,etc
A6061,A6082,A6063 1.0-10 20-2200 20-8000 T4,T6,,etc
A8011 1.0-10 20-2200 20-8000 H12,H22,H14,H16,H18,H24,H26, etc
Standards:ASTM-B209. EN573-1, GB/T3880.1-2006
MOQ 5 tons
Kind attention : Specifications can be customized as the customer's requirements.

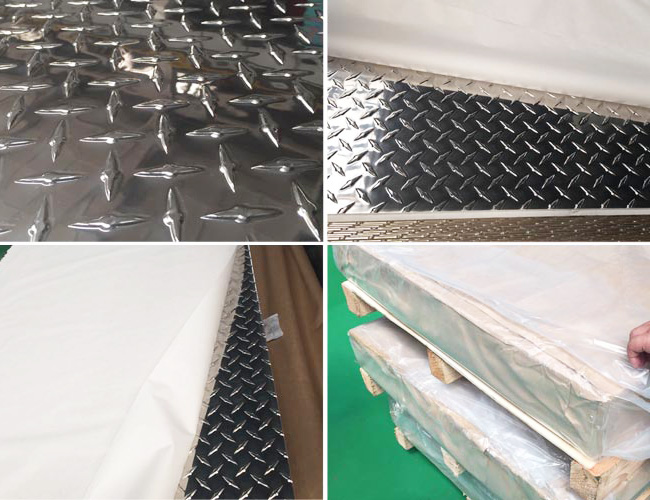

Pointer-aluminum-Checker-plate

Packaging Details

  • 1). Each coil to be securely tied with two bands.
  • 2). the contact points of these bands on the coil edge to be protect with edge protectors.
  • 3). Coil then to be properly wrapped with plastic film ,woven belt, resistant paper.
  • 4). Wooden or iron pallet can be used or as your requirements.
  • Export standard package, The inner size of container is below:
  • 20ft GP: 6m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
  • 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM
  • 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBMs
